Cathodic Protection A Solution for Accelerated Low Water Corrosion

Cathodic Protection A Solution for Accelerated Low Water Corrosion

Ürün ayrıntıları:

Place of Origin: China
Marka adı: OEM
Sertifika: ASTM G-97, ISO, DNV
Model Number: Mg

Ödeme & teslimat koşulları:

Minimum Order Quantity: 10 Kilograms
Fiyat: negotiable
Packaging Details: On pallet with steel bundles
Delivery Time: 1 FCL:14 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal
Supply Ability: 300 Metric Ton/Metric Tons per Month
En iyi fiyat İletişim

Detay Bilgi

İçerik: Magnezyum Managnezi Kullanım: Anti-korozyon / Katodik Koruma
Şekil: 32D5, 17D3, 20D2, 9D3, 3D3, 5D3 Kurban Magnezyum: kurban magnezyum gövde anot
Malzeme: Mg alaşımı Birim ağırlık: 17 lb, 32 lb, 60 lb, 9 lb, 3 lb, 1 lb
Vurgulamak:

sacrificial anode protection

,

mg anode

Ürün Açıklaması

Standard : ASTMagnesium anodes are manufactured in accordance with ASTM B-843 specification Type M1C high potential grade alloy



Chemical compositions of cast magnesium anode (%)

Chemical

HP

AZ63B

AZ63C

AZ63D

Al

<0.01

5.30-6.70

5.30-6.70

5.0-7.0

Zn

---

2.50-3.50

2.50-3.50

2.0-4.0

Mn

0.5-1.30

0.15-0.70

0.15-0.07

0.15-0.70

Si (max)

0.05

0.10

0.30

0.30

Cu (max)

0.02

0.02

0.05

0.10

Ni (max)

0.001

0.002

0.003

0.003

Fe (max)

0.03

0.005

0.005

0.005

Others each

0.05

---

--

---

Others total

0.30

0.30

0.30

0.30

Mg

Balance

Balance

Balance

Balance



Electrochemical Properties of cast magnesium anodes



Open-circuit Voltage

Close-circuit Voltage

Actual capacitance

Current efficiency



(-V)

(-V)

(A.h/g)

(%)

High Potential

1.70-1.75

1.57-1.62

≥ 1.100

≥ 50

Low Potential

(AZ63)

1.50-1.55

1.45-1.50

≥ 1.105

≥ 50

Note: Open and Close-circuit voltage is relative to Saturated Calomel Electrode (SCE)

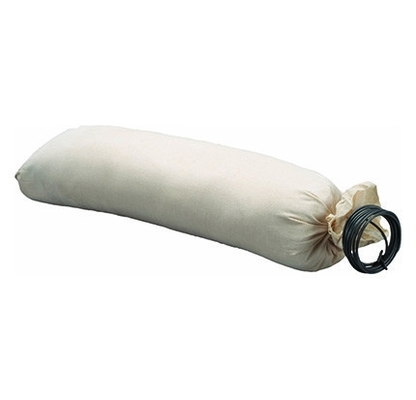

Cathodic Protection A Solution for Accelerated Low Water Corrosion 0

Application:



When Should a Magnesium Anode Be Used? When used for boating purposes, choosing between a magnesium, aluminum, or zinc anode depends on the type of water that the boat or yacht will be used in. Magnesium anodes are most effective when used in fresh water environments, aluminum anodes are most effective in brackish water, while zinc/aluminum are most effective in salt water environment
