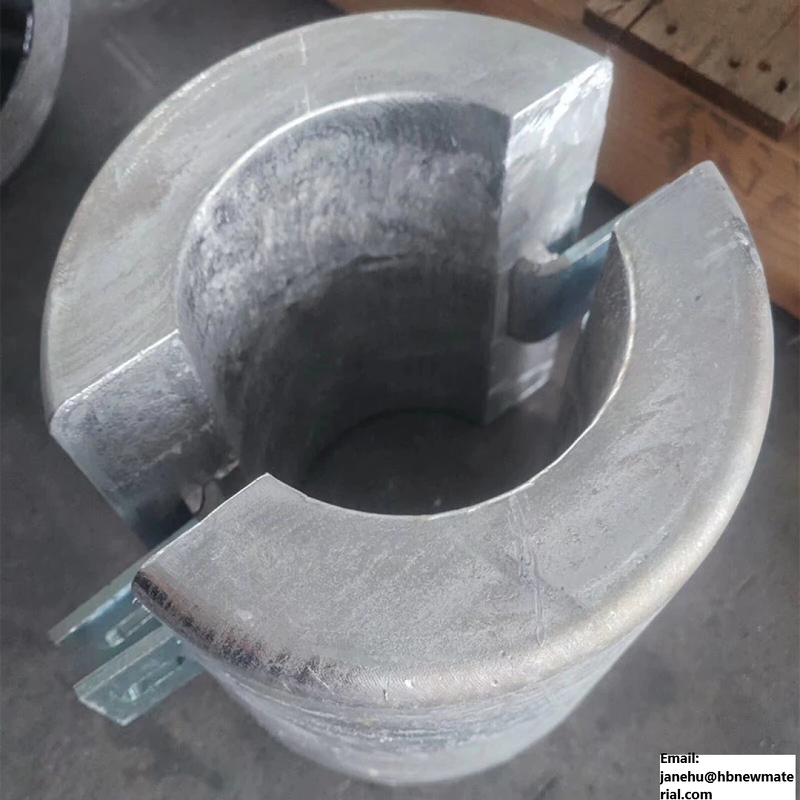

Marine Grade Aluminum Zinc Indium Sacrificial Anode Engineered for Seawater Sea Mud Low Resistivity Environments
Ürün ayrıntıları:
| Menşe yeri: | Hunan, Çin |
| Marka adı: | High Broad |
| Sertifika: | ISO 9001, ASTM G97, DNV, BV |
| Model numarası: | HB-AL |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 10 kilogram |
|---|---|
| Fiyat: | USD 3-5 / Kilogram |
| Ambalaj bilgileri: | Çelik bantlı palet üzerinde, isteğe bağlı olarak tahta sandık da mevcuttur |
| Teslim süresi: | 1 FCL için 14 Gün |
| Ödeme koşulları: | T/T, L/C, Western Union, PayPal |
| Yetenek temini: | Ayda 300 metrik ton |
|
Detay Bilgi |
|||
| Malzeme: | Alüminyum-Çinko-İndiyum Alaşımı (HB-I / Al-Zn-In-Cd) | anot tipi: | Kurbanlık Dökme Alüminyum Anot |
|---|---|---|---|
| Açık devre voltajı: | -1,10 ila -1,18V (Cu/CuSO4'e kıyasla) | Kapalı Devre Gerilimi: | -1,05 ila -1,12V (Cu/CuSO4'e kıyasla) |
| Şuanki kapasite: | ≥2400 Ah/kg | Mevcut Verimlilik: | ≥%85 |
| Yoğunluk: | 2.7 G/cm3 | Mümkün Şekiller: | Gövde, Bilezik, Balast Tankı, Çubuk, Çubuk, Özel |
| İdeal Ortam: | Deniz Suyu, Deniz Çamuru, Acı Su, Düşük-Orta Direnç | ||
| Vurgulamak: | Marine grade aluminum anode,Seawater sacrificial anode,Low resistivity aluminum zinc anode |
||
Ürün Açıklaması
Marine Grade Aluminum Zinc Indium Sacrificial Anode for Seawater and Sea Mud Environments
This marine grade aluminum zinc indium alloy sacrificial anode is engineered specifically to deliver superior cathodic protection in seawater, sea mud, and low resistivity marine environments. With a high current capacity of 2400 Ah/kg and 85% current efficiency, aluminum anodes provide the most cost-effective protection for structures permanently or intermittently immersed in seawater.
Why Aluminum Excels in Seawater and Low Resistivity Environments
- Highest Current Capacity: At 2400 Ah/kg, aluminum anodes deliver more than double the protective current per kilogram compared to magnesium (1100 Ah/kg) and significantly more than zinc (780 Ah/kg), reducing anode weight and installation costs
- Optimized Driving Voltage: Open circuit potential of -1.10 to -1.18V (vs Cu/CuSO4) provides sufficient driving force in low resistivity seawater (20-30 ohm·cm) without risk of over-protection or coating disbondment
- 85% Current Efficiency: Activator elements (zinc and indium) prevent passivation of the aluminum surface, maintaining consistent electrochemical activity throughout the anode's service life
- Proven in Sea Mud: Aluminum anodes maintain reliable performance even when partially or fully buried in sea mud sediments, making them ideal for harbor structures and seabed pipelines
- Low Consumption Rate: ≤3.65 kg/A·year consumption rate ensures long service intervals and reduced maintenance costs for large offshore structures
Technical Specifications
| Alloy Grade | HB-I (Al-Zn-In-Cd) / HB-2 (Al-Zn-In-Sn) / HB-3 (Al-Zn-In-Si) |
| Open Circuit Voltage | -1.10 to -1.18V (vs Cu/CuSO4) |
| Close Circuit Voltage | -1.05 to -1.12V (vs Cu/CuSO4) |
| Current Capacity | ≥2400 Ah/kg |
| Current Efficiency | ≥85% |
| Consumption Rate | ≤3.65 kg/A·year |
| Density | 2.7 g/cm³ |
Chemical Composition (HB-I Standard)
| Element | Zn | In | Si | Cu(max) | Fe(max) | Cd | Al |
|---|---|---|---|---|---|---|---|
| Content (%) | 2.80-6.50 | 0.010-0.020 | 0.08-0.20 | 0.006 | 0.12 | 0.002 | Balance |
Sacrificial Anode Selection Guide by Environment
| Environment Type | Resistivity Range | Recommended Anode | Reason |
|---|---|---|---|
| Seawater | 20-30 ohm·cm | Aluminum / Zinc | Optimal driving voltage, highest capacity, lowest cost |
| Sea Mud / Brackish Water | 30-500 ohm·cm | Aluminum | High capacity maintained in low resistivity sediment |
| Moist Soil | 500-3,000 ohm·cm | Magnesium / Aluminum | Aluminum effective in lower end of range |
| Dry Sandy Soil | >3,000 ohm·cm | Magnesium Only | High driving voltage required |
| Fresh Water | 3,000-10,000 ohm·cm | Magnesium Only | Aluminum passivates in high resistivity |
Applications
- Ship hulls, rudders, and propellers in seawater service
- Ballast tank interiors on tankers and cargo vessels
- Offshore oil and gas platforms, jackets, and subsea structures
- Harbor sheet piling, piers, and dock steel structures
- Submerged and buried pipelines in seabed environments
- Heat exchangers and condenser water boxes using seawater cooling
Quality Assurance
Each anode is cast under strict ASTM G97 standards with third-party laboratory testing for electrochemical performance, chemical composition, and dimensional accuracy. Our 20+ years of manufacturing experience and 5,000 metric ton annual capacity ensure reliable supply for projects of any scale. Custom sizes, core configurations (flat bar, tubular, bolt-on), and alloy grades are available upon request.
