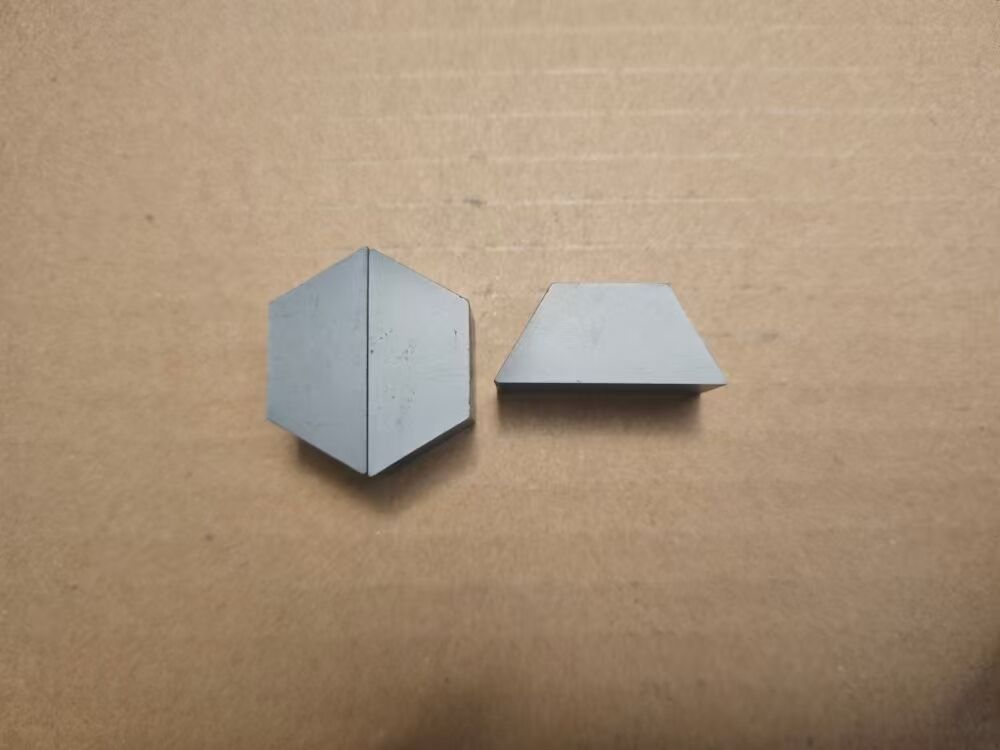

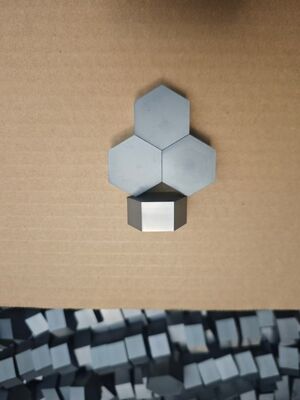

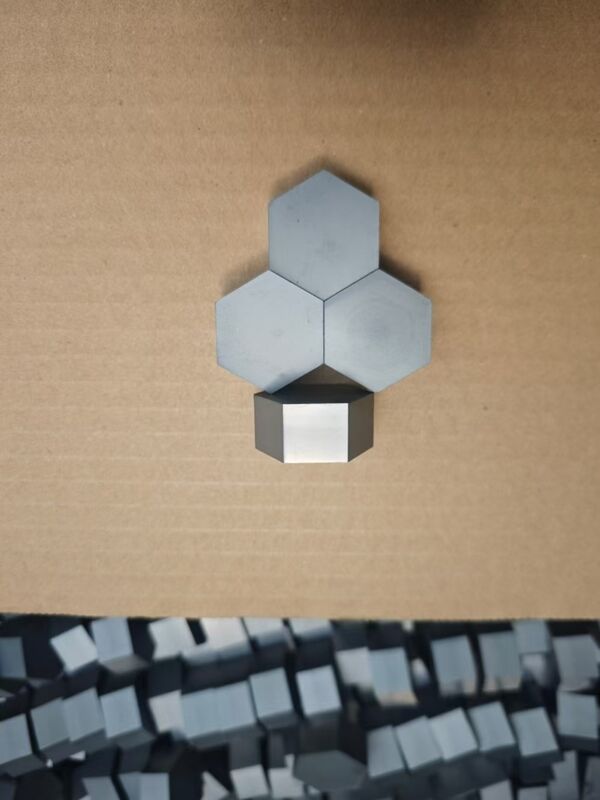

High Hardness 2650 HV Silicon Carbide Strike Face Plate with NIJ III Protection and Multi-Hit Durability
Ürün ayrıntıları:
| Menşe yeri: | Hunan, Çin |
| Marka adı: | ECER |
| Sertifika: | NIJ 0101.06 Level III, ISO 9001:2015 |
| Model numarası: | ECER-SIC-HH-3-1012 |
| Belge: | SIC Ballistic Armor Tiles-P...ad.pdf |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 100 kilogram |
|---|---|
| Fiyat: | USD 20-40 / KGS |
| Ambalaj bilgileri: | Oluklu kutu, ihracat sınıfı kontrplak palet ile bireysel EPE köpük ambalajı |
| Teslim süresi: | Numuneler için 5-7 iş günü, toplu siparişler için 15-25 gün |
| Ödeme koşulları: | T/T, L/C, Western Union, PayPal |
| Yetenek temini: | Aylık 5000 mt |
|
Detay Bilgi |
|||
| NIJ Koruma Seviyesi: | Seviye III (7.62x51mm M80 NATO) | Ağırlık: | 2,3 kg (Tek Plaka) |
|---|---|---|---|
| Yoğunluk: | 3,15 g/cm³ | Boyutlar: | 10x12 inç (250x300 mm) |
| Sertlik: | 2650 HV (Dökülme, Minimum) | Çalışma Sıcaklığı: | -50°C ila +80°C |
| Vurgulamak: | High Hardness SiC Strike Face,Durable Multi-Hit Ceramic Plate,Industrial Grade SiC Armor |
||
Ürün Açıklaması
High-Hardness Silicon Carbide Strike Face Protection Plate — Industrial-Grade Durability at Wholesale Pricing
Material Comparison: Why SiC Dominates the Ceramic Armor Landscape
| Parameter | Silicon Carbide (SiC) | Alumina Oxide (Al₂O₃) | Boron Carbide (B₄C) |
|---|---|---|---|
| Knoop Hardness | 2,600-2,800 HV | 1,800-2,100 HV | 2,800-3,200 HV |
| Density | 3.10-3.18 g/cm³ | 3.85-3.95 g/cm³ | 2.48-2.52 g/cm³ |
| Fracture Toughness | 3.5-4.5 MPa·m½ | 3.0-3.5 MPa·m½ | 2.5-3.0 MPa·m½ |
| Elastic Modulus | 410-450 GPa | 340-380 GPa | 440-470 GPa |
| Thermal Conductivity | 120-170 W/m·K | 24-30 W/m·K | 30-42 W/m·K |
| Cost Index (per plate) | Moderate | Low | Very High |
| Industrial Scalability | Excellent | Excellent | Limited |
It represents our premium industrial-grade Silicon Carbide plate. Unlike standard SiC tiles that may suffer from inconsistent sintering quality, our high-hardness variant is manufactured under strict process controls to deliver guaranteed minimum 2650 HV Knoop hardness across the entire strike face — including edges, where cheaper plates often fail.
Why Hardness Consistency Matters
- Edge-to-Edge Protection: Many budget ceramic plates show hardness drop-off at tile edges due to uneven sintering. Our process ensures homogeneous density and hardness from center to edge.
- Consistent Multi-Hit Performance: Each shot impacts a different tile area. Uniform hardness ensures predictable shattering regardless of impact location.
- Lower Porosity for Longer Shelf Life: Near-zero porosity (<0.5%) prevents moisture absorption that can degrade ceramic performance over time — rated for 12-year shelf life.
- Better Thermal Shock Resistance: SiC's superior thermal conductivity (120-170 W/m·K vs alumina's 24-30 W/m·K) means it handles rapid temperature swings without micro-cracking.
The SiC Cost-Performance Advantage Summarized
- VS Alumina Oxide: 30% harder, 20% lighter, 50% better multi-hit rating — for only a 20-30% cost increase
- VS Boron Carbide: 90% of the ballistic performance at 35-45% lower cost with dramatically better supply chain reliability
- VS Pure PE: Defeats M855/SS109 penetrators that UHMWPE-only plates cannot stop
Key Features
- 2650 HV Minimum Guaranteed Hardness: Each production batch is hardness-tested with documentation available
- Near-Zero Porosity Sintering: Advanced pressureless sintering with post-HIP treatment for <0.5% porosity
- Aramid/UHMWPE Hybrid Backing: Combines the thermal stability of aramid with the lightweight toughness of UHMWPE
- Full Cut Profile: Maximum coverage area for vital organ protection
- 12-Year Rated Shelf Life: Extended service life reduces total cost of ownership
Equip your force with industrial-grade Silicon Carbide armor that outperforms alumina on every metric and rivals boron carbide at half the cost. Contact us now for technical datasheets, ballistic reports, and wholesale pricing.
