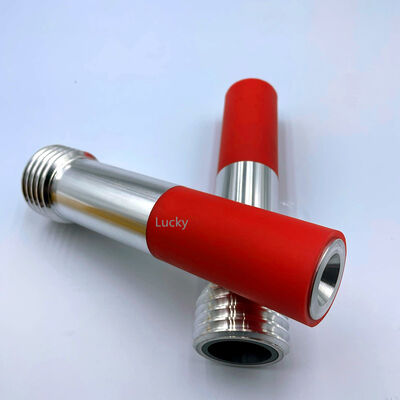

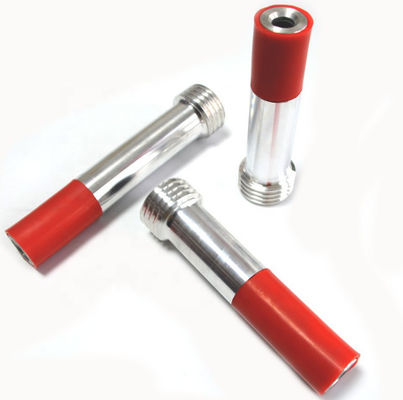

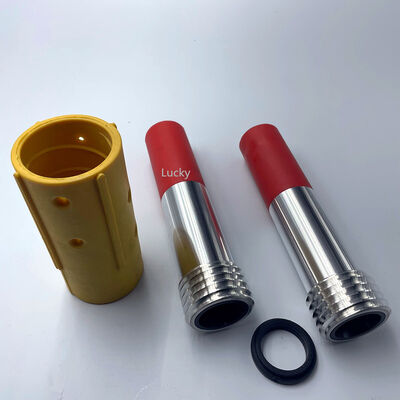

Universal Boron Carbide Sandblasting Nozzle for High Efficiency Blasting with Extended Service Life
Ürün ayrıntıları:
| Menşe yeri: | Hunan, Çin |
| Marka adı: | High Broad |
| Sertifika: | ISO 9001:2015 |
| Model numarası: | HB-200X11mm |
| Belge: | Venturi nozzle Jane.pdf |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 10 adet |
|---|---|
| Fiyat: | USD 70.00 - 100.00 / Piece |
| Ambalaj bilgileri: | Bireysel köpük kaplı kutu, nem bariyerli ihracat sınıfı oluklu karton |
| Teslim süresi: | Stok için 3-5 iş günü, üretim için 15-20 gün |
| Ödeme koşulları: | T/T,L/C,PayPal,Western Union |
| Yetenek temini: | Aylık 50000 Adet |
|
Detay Bilgi |
|||
| Meme tipi: | Venturi Deliği | Sertlik: | ≥2800 Düğme (HK) |
|---|---|---|---|
| Delik Çapı: | 11 mm | Meme Malzemesi: | Bor Karbür (B4C) |
| Bağlantı iş parçacığı: | M16x1.5 | Meme Uzunluğu: | 200 mm |
| Vurgulamak: | Universal Abrasive Compatible,High Efficiency Sandblast,Multi Purpose Boron Carbide |
||
Ürün Açıklaması
Key Advantages
Universal Abrasive Compatibility
Optimized bore geometry and B4C material compatibility with aluminum oxide, silicon carbide, garnet, steel grit, glass beads, and walnut shell. Switch abrasives without changing nozzles.
High Efficiency Blasting
50mm extended venturi with 9mm large bore accelerates abrasive media to maximum velocity. Achieves up to 25 m²/hr material removal rate, significantly reducing project turnaround time.
Extended Service Life
B4C ceramic with Knoop hardness ≥2800 HK withstands the abrasive wear of even the most aggressive media like silicon carbide and steel grit for thousands of operating hours.
Cost-Effective Multi-Purpose
Replace multiple specialized nozzles with one universal solution. Reduce inventory complexity and procurement costs while maintaining top-tier blasting performance across all media types.
Technical Specifications
| Material | Boron Carbide (B4C) Ceramic |
| Nozzle Type | Venturi Bore |
| Bore Diameter | 11mm |
| Nozzle Length | 200mm |
| Material Removal Rate | Up to 25 m²/hr |
| Compatible Abrasives | Al₂O₃, SiC, Garnet, Steel Grit, Glass Beads, Walnut Shell |
| Hardness | ≥2800 HK (Knoop) |
| Max Operating Pressure | 0.8 MPa (116 PSI) |
Applications
- Heavy steel structure and bridge surface preparation
- Shipyard hull blasting with multiple abrasive media types
- Industrial tank and pressure vessel interior/exterior blasting
- Concrete surface profiling and coating removal
- Multi-project job shops requiring abrasive flexibility
Contact US:
China Hunan High Broad New Material Co., Ltd.
70 Chezhan North Road,Changsha, China 410100
Tel:+86-731-85717705
Fax:+86-731-85716569
Mobile/Whatsapp: +86-139-7515-2932
Simplify your blasting operations with one universal nozzle. Contact us for bulk pricing and OEM customization options today.
