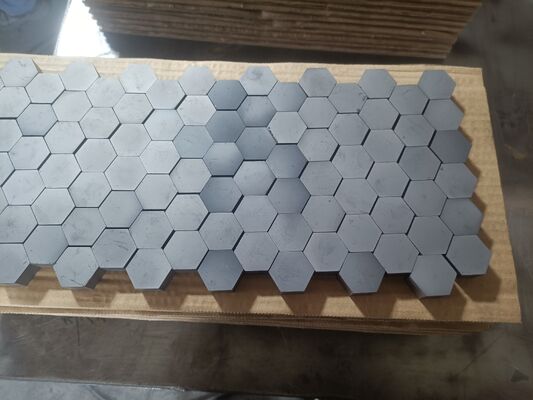

Lightweight SiC Ceramic Ballistic Protection Plate NIJ Level III Stand Alone 250x300mm Composite Armor Panel
Ürün ayrıntıları:
| Menşe yeri: | Hunan, Çin |
| Marka adı: | High Broad |
| Sertifika: | ISO 9001:2015, NIJ 0101.06 Level III |
| Model numarası: | aynen fayans |
| Belge: | SIC Ballistic Armor Tiles-P...ad.pdf |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1000 Adet |
|---|---|
| Fiyat: | USD 0.1-1/pieces |
| Ambalaj bilgileri: | Bireysel PE torba + EPE köpük + ihracat sınıfı oluklu karton |
| Teslim süresi: | Stok için 7-10 iş günü, üretim için 20-30 gün |
| Ödeme koşulları: | T/T,L/C,Western Union |
| Yetenek temini: | Aylık 10000 Adet |
|
Detay Bilgi |
|||
| Yoğunluk: | 1,85-2,10 g/cm³ (toplam) | Eğilme Dayanımı: | 380-450 MPa (SiC katmanı) |
|---|---|---|---|
| Döşeme Boyutu: | 250x300mm | Alan Yoğunluğu: | ≤26 kg/m² |
| Kırılma Tokluğu: | 3,5-4,5 MPa·m½ (SiC katmanı) | Kalınlık: | 18,0 mm (toplam) |
| Vurgulamak: | Lightweight SiC Armor Plate,Stand Alone Ballistic Panel,NIJ III Ceramic Composite |
||
Ürün Açıklaması
This lightweight hybrid composite panel combines pressureless sintered silicon carbide (SiC) ceramic strike face tiles with ultra-high molecular weight polyethylene (UHMWPE) backing. This design achieves NIJ Level III stand-alone protection at an areal density below 26 kg/m²—35-40% lighter than comparable all-alumina panels.
The SiC strike face provides exceptional hardness for threat disruption, while the PE backing absorbs residual kinetic energy through controlled delamination and fiber stretching.
- Stand Alone Protection - No additional backing required
- NIJ 0101.06 Level III Certified
- Ultra-Lightweight - 35-40% lighter than alumina alternatives
- Multi-Curve Ergonomic Design for improved comfort
- Edge-To-Edge Ceramic Coverage with minimal gaps
| Panel Type | Areal Density | Weight (250x300mm) | Weight Saving vs Al₂O₃ |
|---|---|---|---|
| SiC + PE Composite | ≤ 26 kg/m² | ~1.95 kg | 35% Lighter |
| Al₂O₃ + PE Composite | ~38 kg/m² | ~2.85 kg | Baseline |
| B₄C + PE Composite | ~22 kg/m² | ~1.65 kg | 15% Lighter but 2x Cost |
The ultra-hard SiC ceramic face (2500+ HV) fragments and erodes the impacting projectile, significantly reducing its penetrating capability. The UHMWPE backing then catches the fragmented core, absorbing residual energy through tensile fiber failure.
| Panel Size | 250 × 300 mm |
| Total Thickness | 18.0 mm |
| SiC Tile Size | 50 × 50 mm |
| Backing Material | UHMWPE |
| Areal Density | ≤ 26 kg/m² |
| Panel Weight | ~1.95 kg |
| Protection Level | NIJ Level III |
| Curvature | Single / Multi-Curve |
Each production batch undergoes rigorous ballistic testing per NIJ 0101.06 Level III standards. Test reports available upon request for qualified buyers.
Custom panel sizes and curvature available upon request.
Request a quote for bulk orders today.
