Silicon Carbide Ballistic Tile Kit with 400x400mm Panel Size and Field Replaceable Tiles for NIJ Level III Protection
Ürün ayrıntıları:
| Menşe yeri: | Hunan, Çin |
| Marka adı: | High Broad |
| Sertifika: | ISO 9001:2015, NIJ 0101.06 |
| Model numarası: | aynen fayans |
| Belge: | SIC Ballistic Armor Tiles-P...ad.pdf |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1000 Adet |
|---|---|
| Fiyat: | USD 0.1-1/pieces |

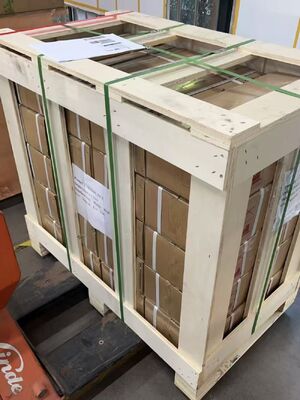

| Ambalaj bilgileri: | Yerleştirme kılavuzu + ihracat sınıfı kontrplak kutu ile EPE köpük tepsisinde paketlenmiş kit |
| Teslim süresi: | Stok için 7-10 iş günü, üretim için 20-25 gün |
| Ödeme koşulları: | T/T,L/C,Western Union |
| Yetenek temini: | Ayda 5000000 KGS |
|
Detay Bilgi |
|||
| Yoğunluk: | 3,10-3,15 g/cm³ (fayans) | Eğilme Dayanımı: | 380-450MPa |
|---|---|---|---|
| Döşeme Boyutu: | 400x400mm (montajlı panel) | Alan Yoğunluğu: | ≤36 kg/m² (montajlı) |
| Kırılma Tokluğu: | 3,5-4,5 MPa·m½ | Kalınlık: | 8,0 mm (döşeme) / 16 mm (toplam) |
| Vurgulamak: | SiC Tile Array Kit,Modular Strike Face System,NIJ III Protection Panel |
||
Ürün Açıklaması
Silicon Carbide Ceramic Ballistic Tile Array Kit NIJ Level III Modular Strike Face Protection 400x400mm Panel Kit
SiC Ballistic Tile Array Kit - Modular Protection System
NIJ Level III | Complete 400x400mm Assembly | Field Replaceable Tiles
- All-In-One Kit
- Field Serviceable
- Template Guided Assembly
Complete Kit, Ready to Assemble
The High Broad is a China tile array kit containing everything needed to build a 400x400mm NIJ Level III strike face panel. Each kit includes: 16 precision-ground 100x100mm SiC tiles, a laser-cut adhesive template, edge-gap spacers, and perimeter sealing components. The modular design means individual damaged tiles can be field-replaced without scrapping the entire panel—dramatically reducing lifecycle costs. For organizations currently using B4C tile kits, switching to our SiC kit typically reduces procurement costs by 40-50% without measurable protection degradation.
Kit Contents
16x SiC Tiles (100x100x8mm), 1x Laser-Cut Adhesive Template, Edge-Gap Spacers, Perimeter Sealing Strip, Assembly Instruction Card, Batch Traceability Certificate.
Lifecycle Cost Advantage
Field-replaceable tiles mean a damaged panel doesn't require complete replacement. Replace only affected tiles at ~$35 each vs scrapping a $500+ B4C monolithic panel—an 85%+ repair cost reduction.
Standardized Interface
The 400x400mm panel dimension is a widely adopted standard for vehicle add-on armor. Kits can be combined side-by-side for larger coverage areas with consistent seam spacing between panels.
Batch Traceability Included
Each kit ships with a unique batch number linking all 16 tiles to their sintering lot, hardness test results, and dimensional inspection report—full material genealogy for quality assurance.
Kit Specifications
| Assembled Panel Size | 400 x 400 mm |
| Tile Count per Kit | 16 (4x4 array) |
| Individual Tile Size | 100 x 100 x 8 mm |
| Tile Material | Pressureless Sintered SiC |
| Inter-Tile Gap | 1.5 ± 0.2 mm |
| Edge Chamfer | 0.3mm x 45° on all tiles |
| Template Material | Laser-Cut Acrylic (Reusable) |
| Kit Weight | ~4.8 kg (tiles only) |
Upgrade to modular SiC tile kits—lower cost, easier maintenance
Email: janehu@hbnewmaterial.com
Custom kit configurations and volume discounts available
Custom kit configurations and volume discounts available
